Material: Nitrile Butadiene Rubber (NBR) with steel skeleton Color: Black (standard) / Custom colors available Hardness: 70±5 Shore A Temperature Range: -30°C to +120°C Seal Type: MC combined type, inner rotating, double lip with garter spring Key Feature: Self-rotation prevents shaft wear; dual-seal blocks mud, water, grass and oil Application: Rotary tiller blade shaft, agricultural PTO shafts, farm machinery axles Sales Mode: Factory direct wholesale, OEM/ODM, sample orders accepted MOQ: 100 pieces for standard sizes
Rotary
| Quantity: | |
|---|---|

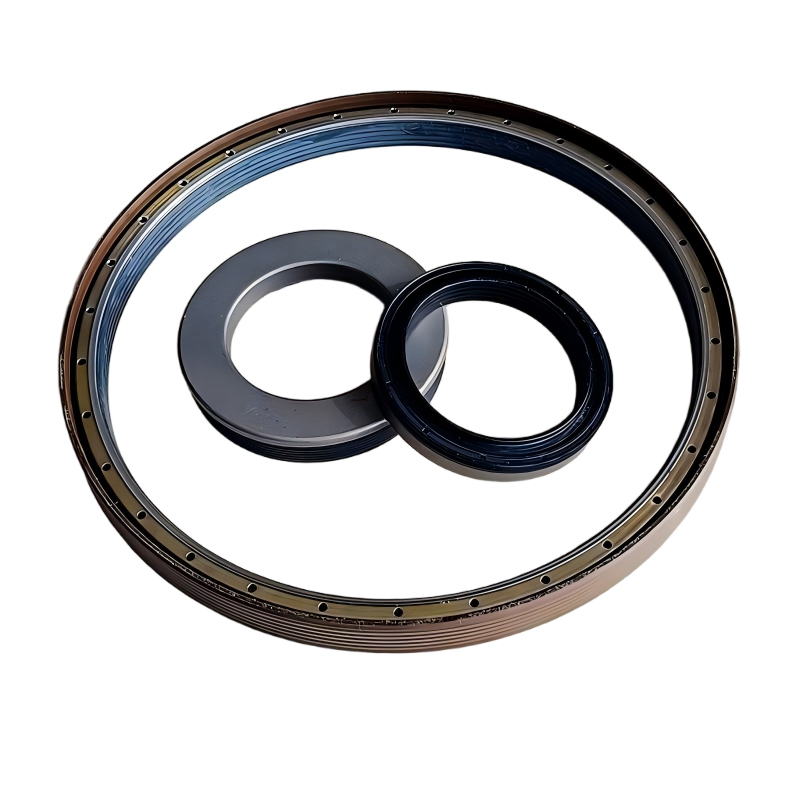

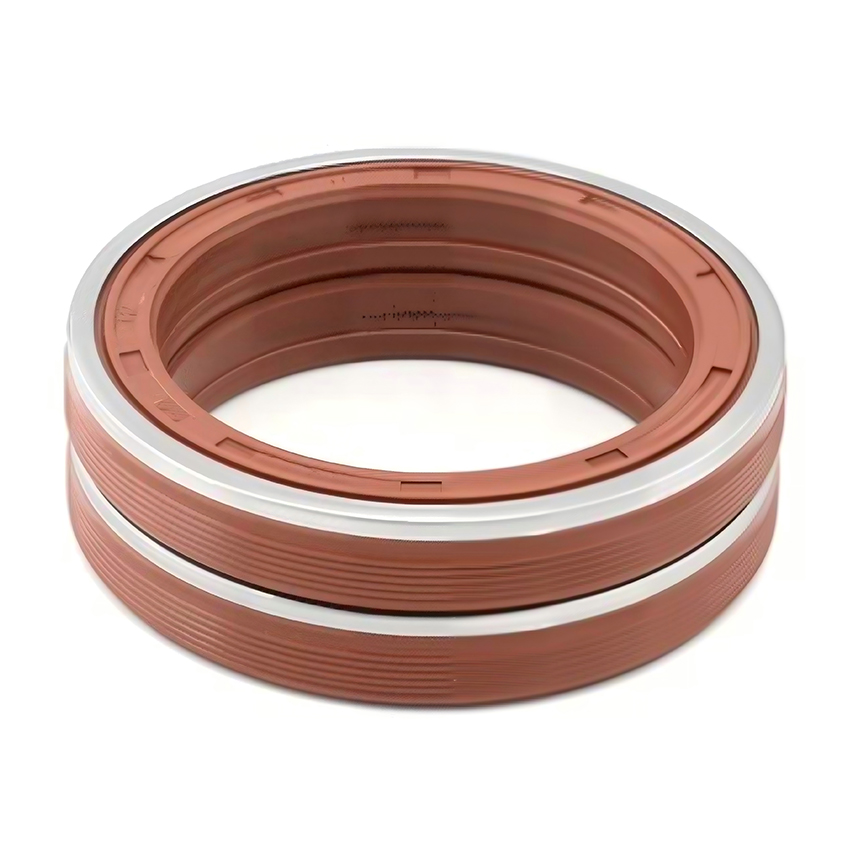

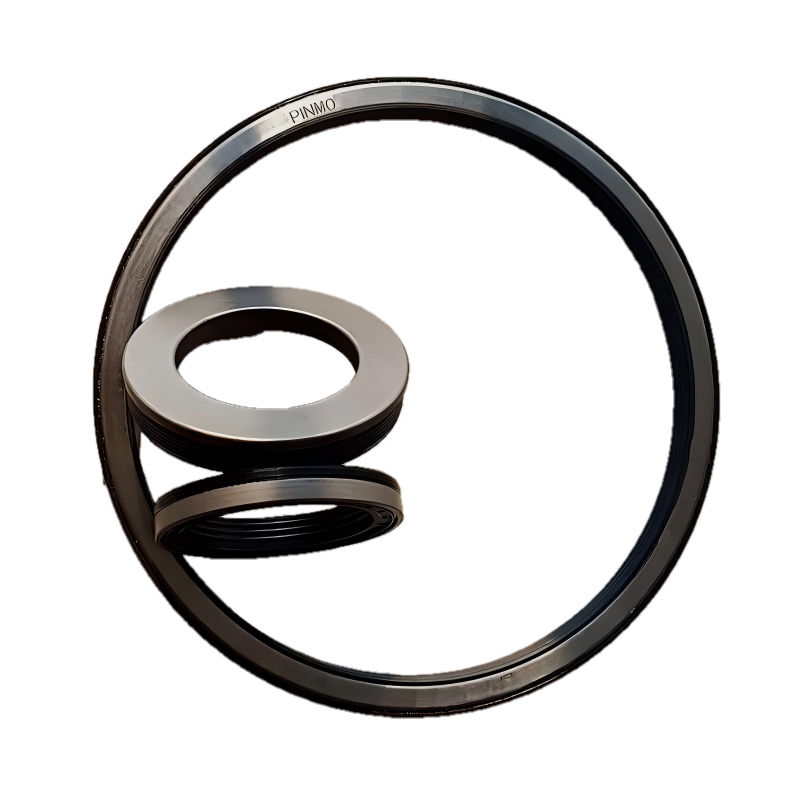

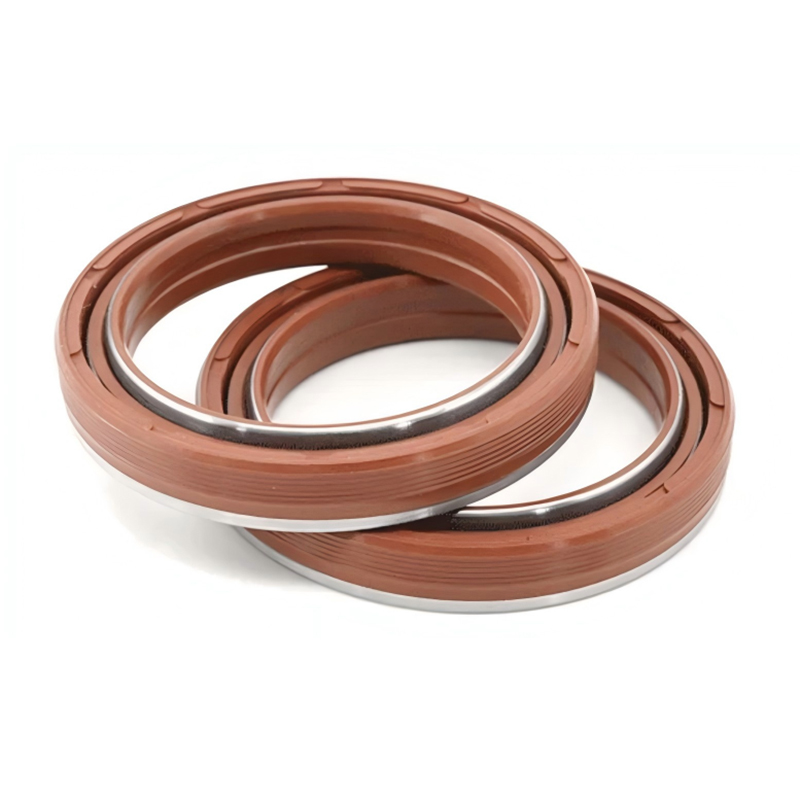

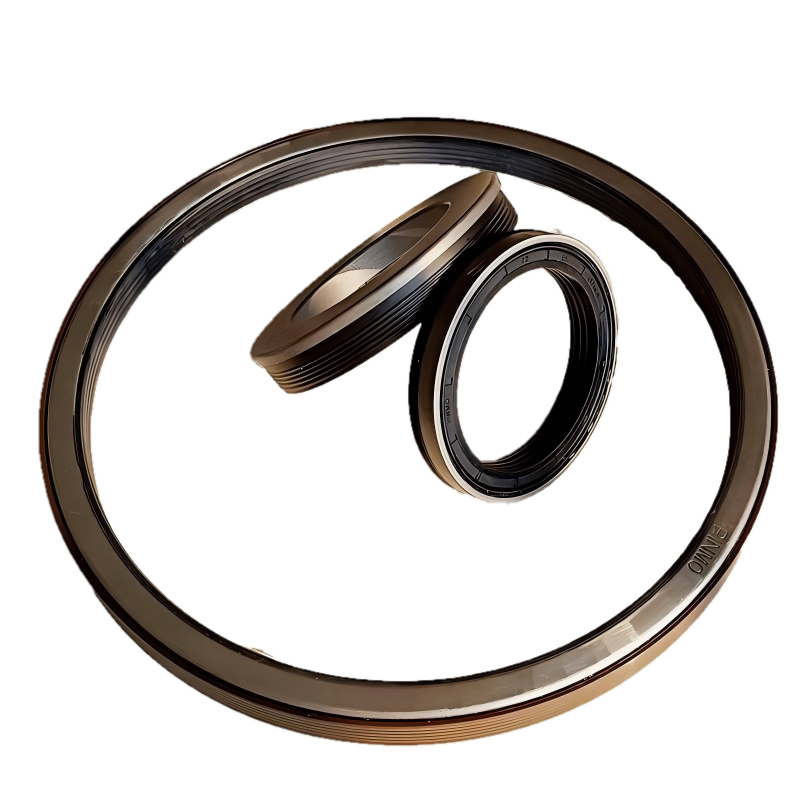

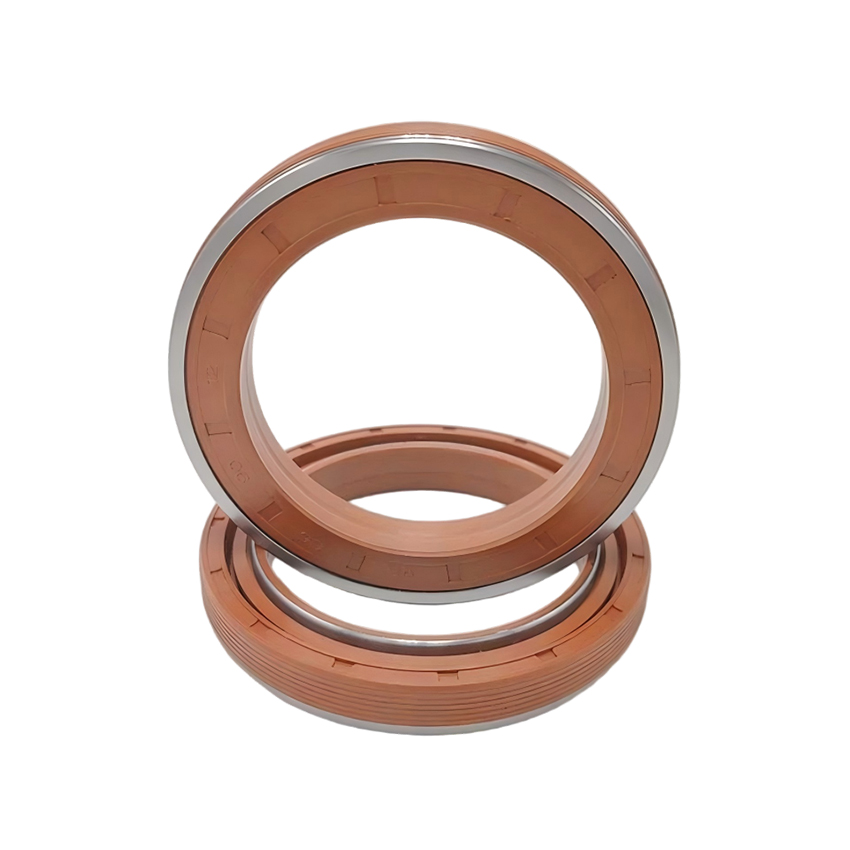

The MC Mud-Proof Combination Oil Seal is a specialized rotary shaft seal engineered for the extreme conditions of agricultural soil preparation. Designed primarily for rotary tillers, it combines a self‑rotating inner assembly with a robust double‑lip elastomer seal to deliver unmatched protection against grass winding, abrasive mud, and lubricant leakage.
Functional Design & Superior Sealing
Unlike conventional oil seals, this combination seal features an independently rotating inner ring that contacts the shaft. As the shaft turns, the inner ring rotates with it, eliminating direct rubber‑to‑shaft friction and preventing shaft groove wear — a common failure point in dusty environments. The outer NBR sealing lip, reinforced by a steel garter spring, creates a tight static seal against the housing, while the inner dust lip blocks fine soil particles, grass debris, and moisture. The result is a true double‑barrier: oil stays in, mud and grass stay out.
Premium NBR Elastomer & Steel Skeleton
The sealing element is precision‑molded from high‑grade Nitrile Butadiene Rubber (NBR), chosen for its excellent resistance to petroleum‑based oils, hydraulic fluids, and grease commonly used in agricultural machinery. NBR also offers high abrasion resistance and good elasticity, maintaining a reliable seal even under vibration and misalignment. The rigid steel outer case ensures a secure press‑fit into the housing bore, preventing external leaks and withstanding high‑pressure washdowns.
Optimized for Rotary Tillers and Beyond
This MC combination oil seal is a direct replacement for popular rotary tiller blade shaft applications. It effectively handles the constant intrusion of crop residue, wet soil, and sand. Typical installation locations include tiller blade rotors, harrow shafts, stalk choppers, and other soil‑engaging implements. The self‑rotating feature makes it ideal for shafts with high lateral loads and frequent stop‑start cycles. Verify shaft diameter, bore diameter, and width against our sizing chart — custom dimensions available upon request.
